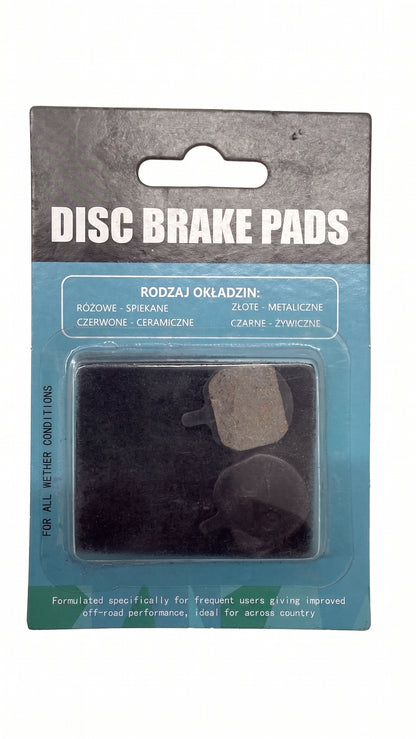

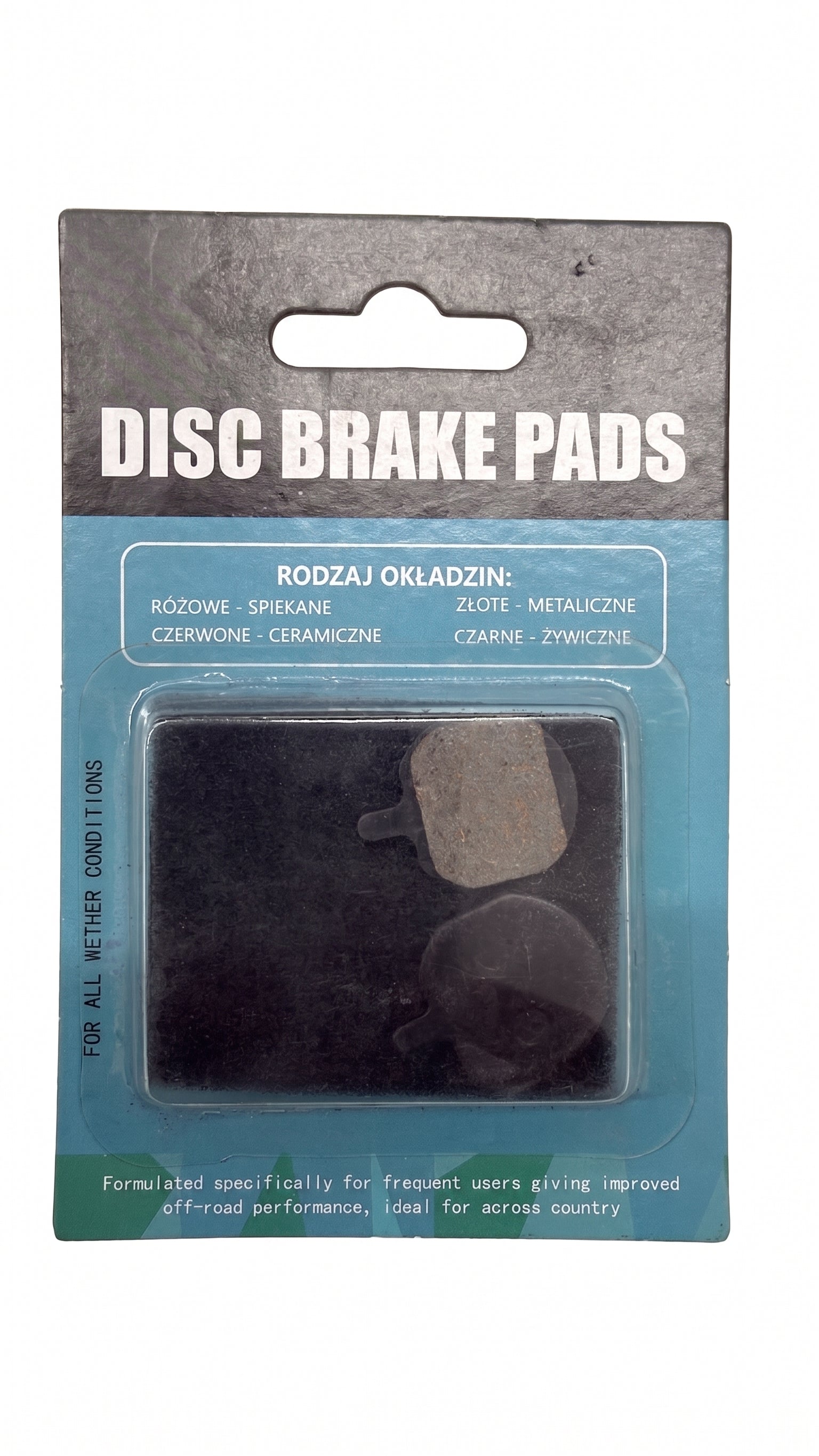

TP-04B Bicycle E-Bike Disc Brake Pads - JAK-5, JAK 5, B777, M188, M208, M288, M308, M318, and YE113.

TP-04B Bicycle E-Bike Disc Brake Pads - JAK-5, JAK 5, B777, M188, M208, M288, M308, M318, and YE113.

£10.00 GBP
£10.00 GBP
Sale Sold out
TP-04B Bicycle & E-Bike Disc Brake Pads

Restore optimal braking response and control with the TP-04B Disc Brake Pads. Formulated for daily commuting, cross-country cycling, and e-mobility riding, these pads provide reliable initial bite, smooth lever modulation, and consistent thermal stability across off-road and all-weather conditions.

Compatible Brake Calipers & E-Bike Models

  • Compact Mechanical Disc Calipers: Direct replacement fitment for popular budget 2-piston mechanical disc brake systems, including JAK-5, JAK 5, B777, M188, M208, M288, M308, M318, and YE113.

  • E-Scooter & Light E-Bike Brands: Fits popular electric scooters and compact folding e-bikes using JAK / Winzip-style small pad bodies (such as select models from Kukirin, Xiaomi, Fiido, DYU, and Samebike).

  • Bicycle Systems: Compatible with select entry-level mechanical disc brakes found on recreational mountain bikes, hybrids, and folding bikes.

Key Features & Specifications

  • Compact Pad Profile: Designed to standard TP-04B dimensions (approx. 20.8 mm x 27.4 mm).

  • Off-Road & All-Weather Ready: Engineered for frequent riders to deliver low thermal attenuation and fade-resistant stopping performance.

  • Low Noise Compound: Provides quiet operation with minimal disc rotor wear.

  • Package Includes: 1x Pair (2 pads) of TP-04B disc brake pads with a heavy-duty retaining spring.

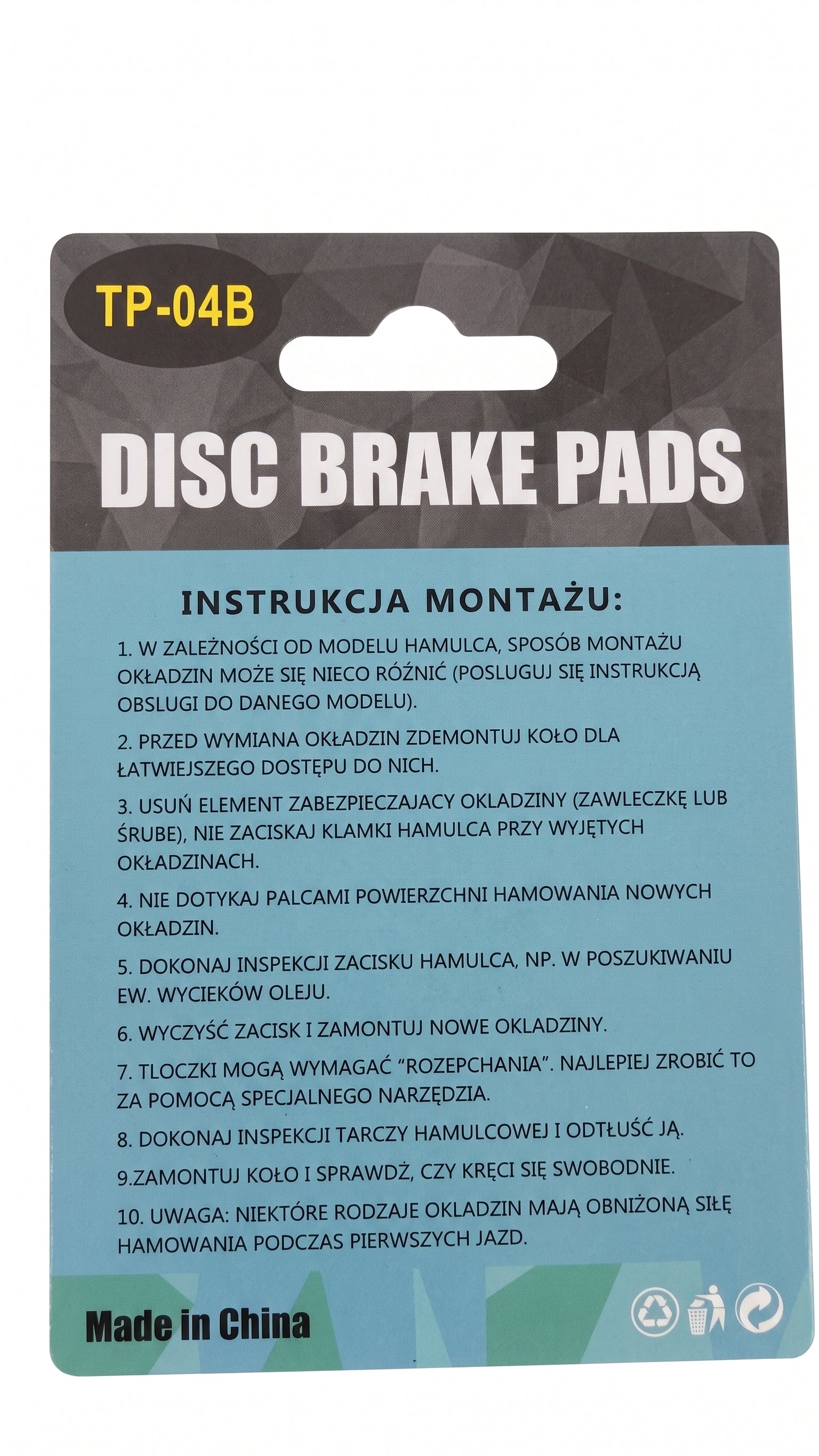

Installation & Fitting Guidance

  1. Remove the wheel for clear access to the caliper body.

  2. Remove the securing pin/screw, spread the pistons back, and extract old worn pads.

  3. Clean the brake caliper and rotor thoroughly with a dedicated disc brake cleaner before installing new pads; avoid touching friction surfaces with bare fingers.

  4. Insert the new TP-04B pads with the spring, secure the pin, and verify free wheel rotation.

  5. Note: Friction performance may feel slightly reduced during the initial bed-in period of the first few rides.

Low stock: 10 left
